Features
Both JLR-8400 and JLR-8600 are reliable and accurate GPS navigators which carry the same JRC DNA with uniform design and intuitive, trusted operation. Combined with our new multi-GNSS sensor you are ensured of accurate positioning without compromise.
| - High reliability | - Flexibility system configuration |
|
| - Multi-GNSS sensor | - IMO approved | |
| - Up to 22 satellite signal trackable | - Complete and compact | |
| - Intuitive and trusted operation | - High accuracy | |
| - Easy to install | - Remote maintenance posiible |
JLR-8400
The compact JLR-8400 GPS navigator is compatible with Multi GNSS and will provide accurate position data even in Arctic area, without SBAS and beacon.
JLR-8600
The compact JLR-8600 GPS navigator is compatible with Multi GNSS and will provide accurate position data even in Arctic area, without SBAS and beacon.
| JLR-8400 | JLR-8600 | |
|---|---|---|
| Units | 2 | 3 |
| Route sharing with LAN | n / a | ECDIS / Radar / Navigation system |
| Waypoint | 1,000 | 10,000 |
| Routes | 20 ( 50 waypoint / route ) | 100 ( 512 waypoint / route ) |
| Alarm log | 40 | 100 |
Multi-GNSS sensor
The newly designed multi-GNSS sensor is capable of receiving data from GPS as well as GLONASS or BeiDou at the same time, allowing for a highly accurate positioning, without beacon and SBAS.The sensor can increase the accuracy of your position by receiving correction data SBAS satellites. Combination for multi-GNSS
GPS stand alone
GPS + GLONASS
GPS + BeiDou
Easy installation
Both displays are very compact and can virtually be mounted anywhere using the flush mount system. The base of the sensor is designed for an easy installation, either on a pole or on an extension mast. The base also includes a slot allowing for easy cable management. Connecting everything together allows for a high reliability installation approach with redundancy of sensors, power supply and processor units.
System
Dimensions
|

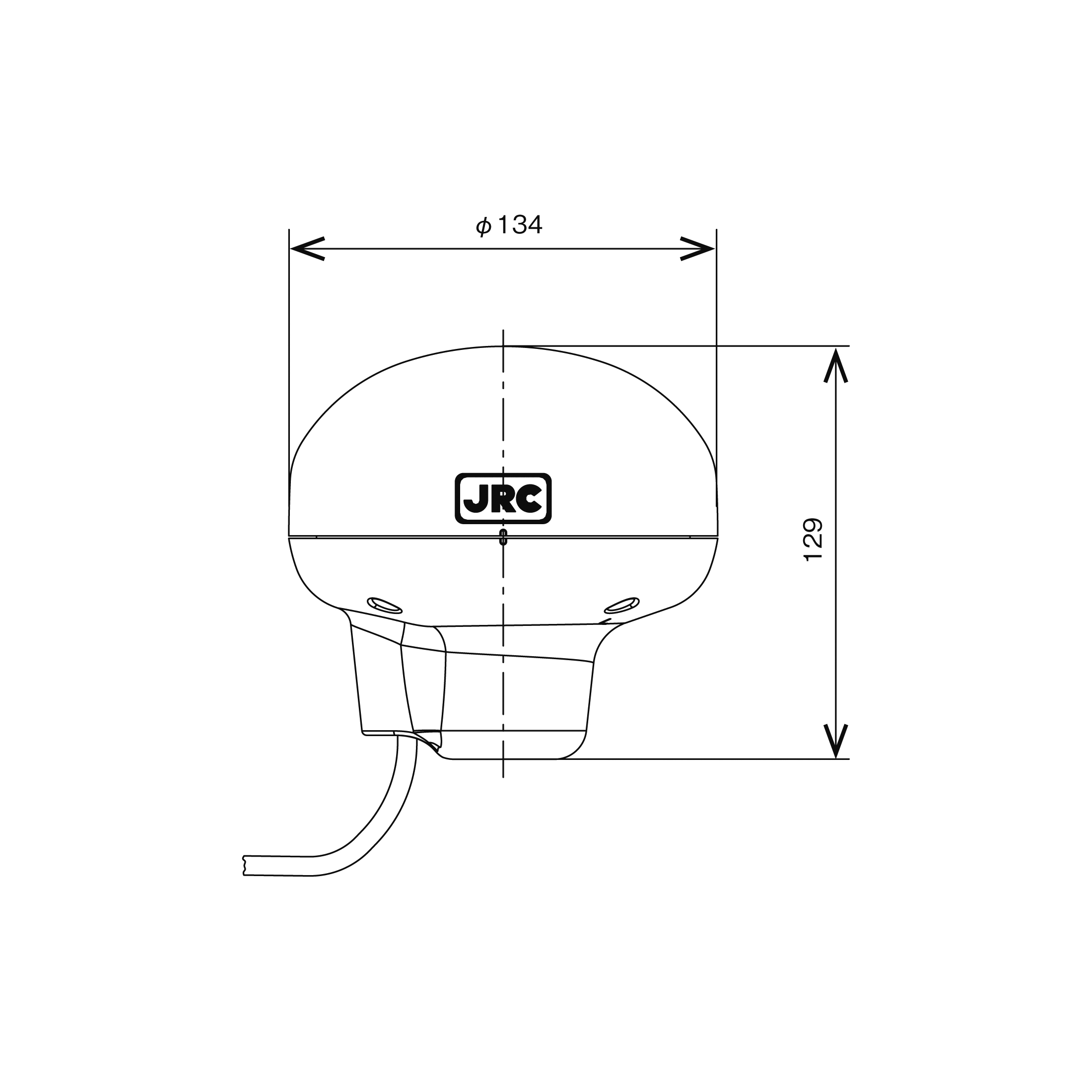

GPS sensor unit JLR-4350 Mass : Approx. 1.2 kg
|

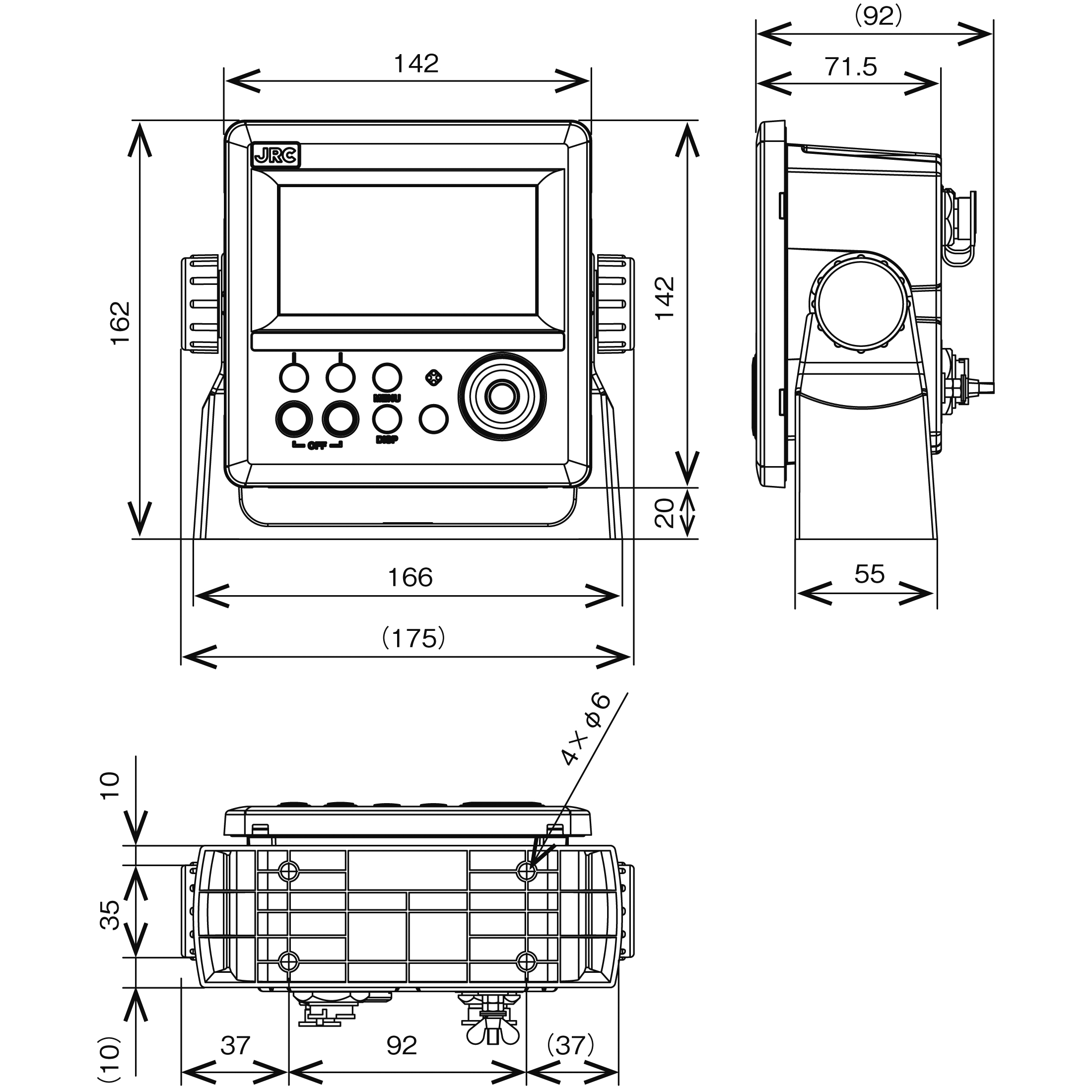

Display unit NWZ-4620 Mass : Approx. 0.8 kg
|
|

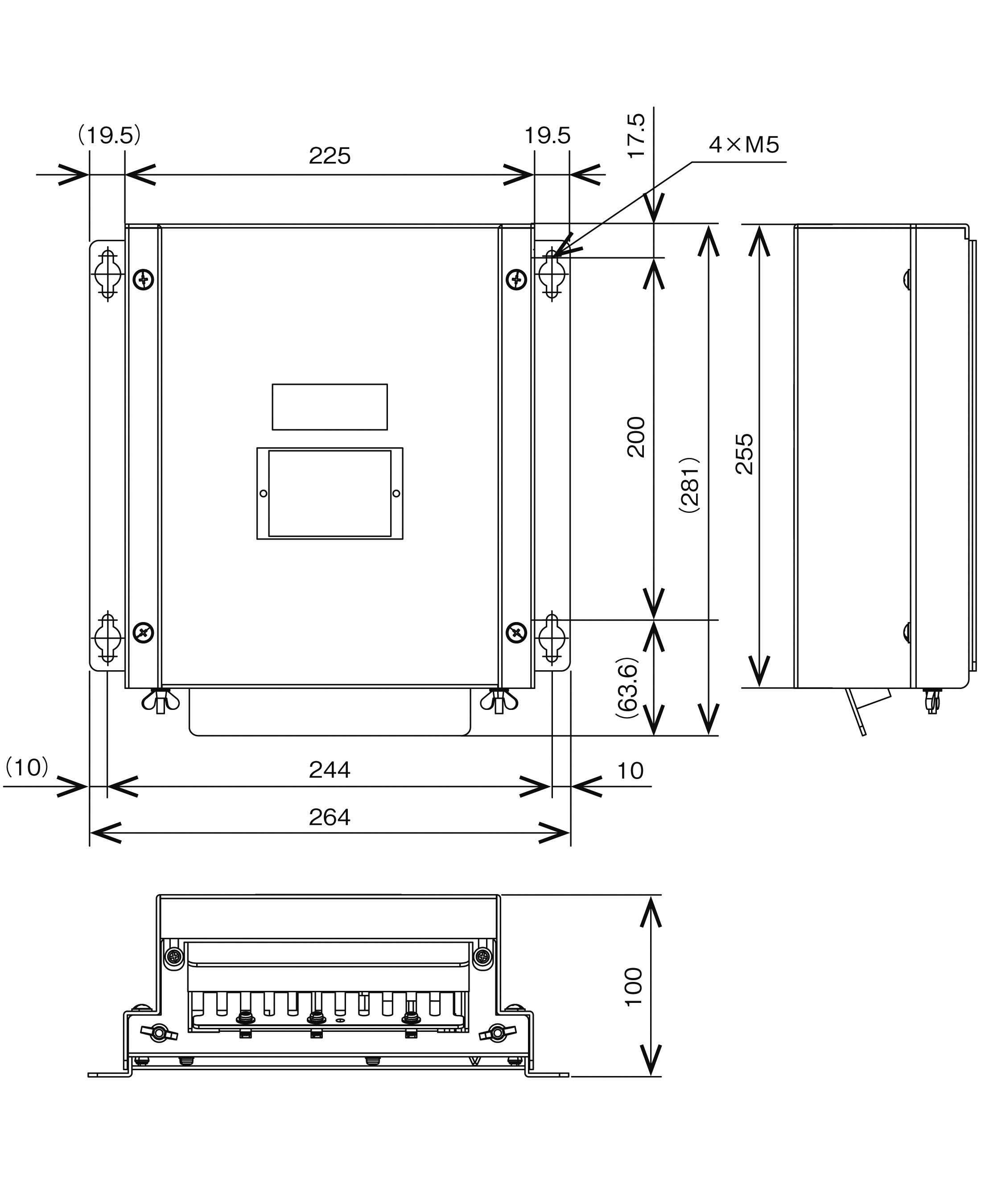

Processor unit NDC-4100 Mass : Approx. 1.9 kg
|

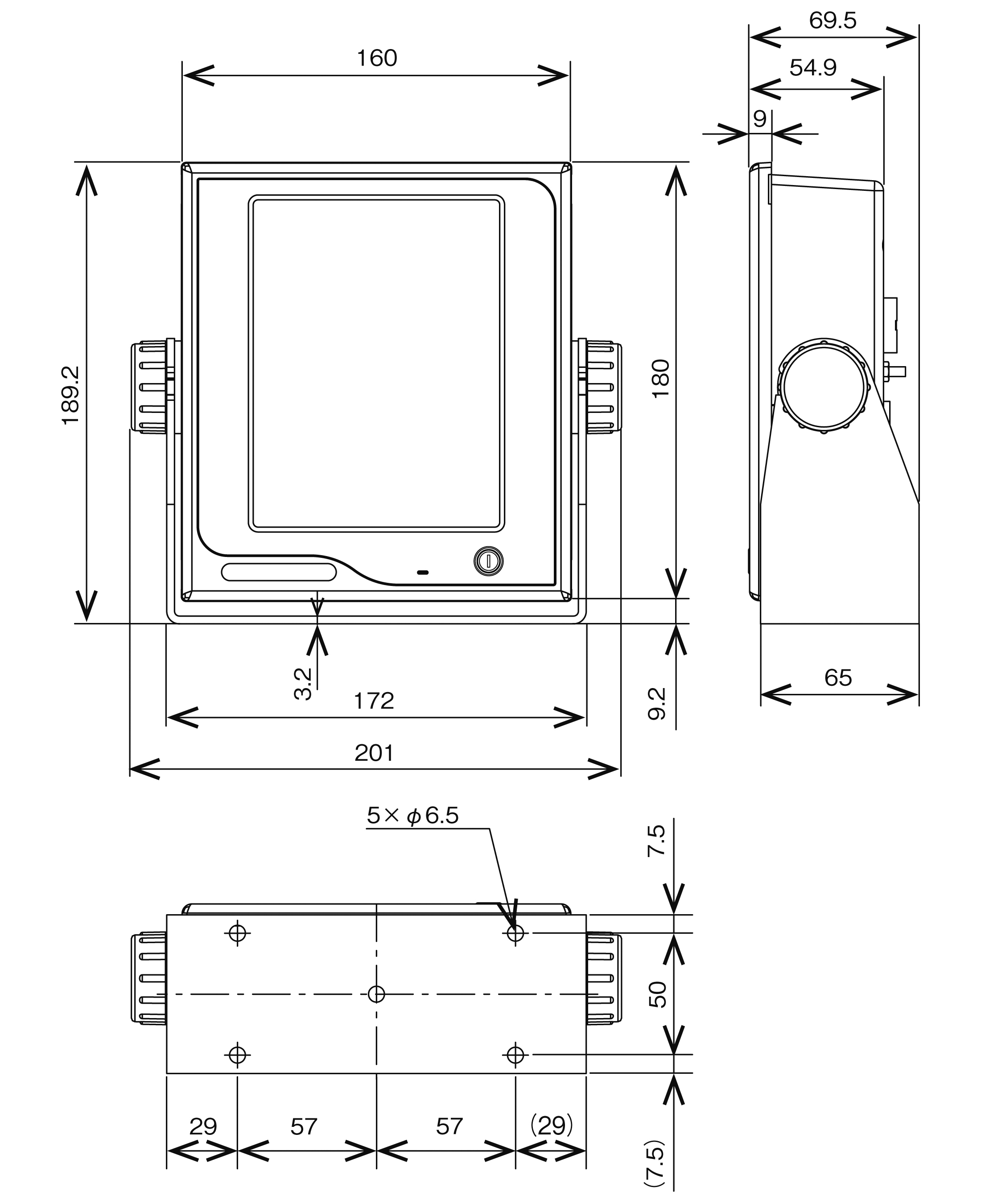

Display unit NWZ-1650 Mass : Approx. 1.5 kg ( Base kits included )
|
