Features
IMO-compliant and MED-certified marine radar*1
*1 : Cat.2 certification.The JMR-5400 series is equipped with a top-of-the-line processor,remarkably improving target detection and drawing performance a like.
Also, in addition to the newly developed and highly sensitive radar antenna, an 8ft S band solid-state radar antenna is also available.

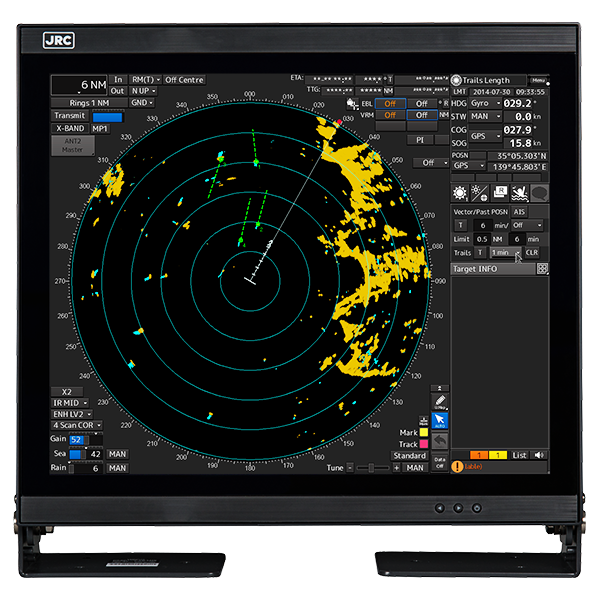

High-resolution display with 1,000cd/m2 brightness.*2
*2 : 19-inch model only.
The newest signal processing technology with highly refined image display.

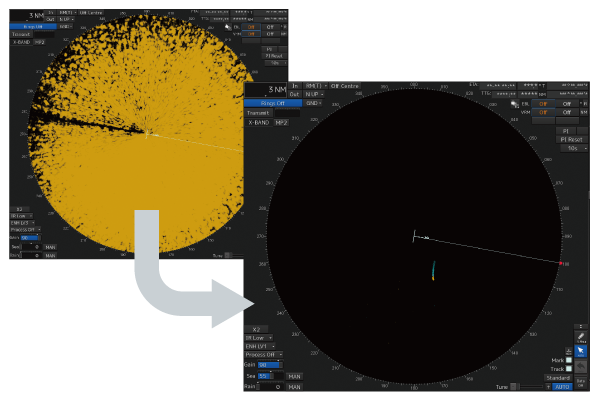

Short-range target detection and clutter removal functionality.
Small oceanic targets that were previously difficult to detect are displayed crisply and clearly. Automatic clutter removal and optimized technology has dramatically improved detection capabilities, and also allows the positions of other ships to be displayed clearly.

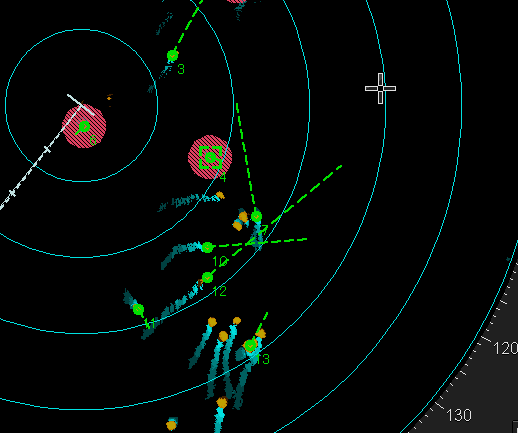

TT/AIS display functionality.
Equipped with TT functionality by default, allowing users to mark other ships and points of interest with TT symbols and check the course of nearby objects at a glance. The same highlighting functionality is also available for AIS symbols.

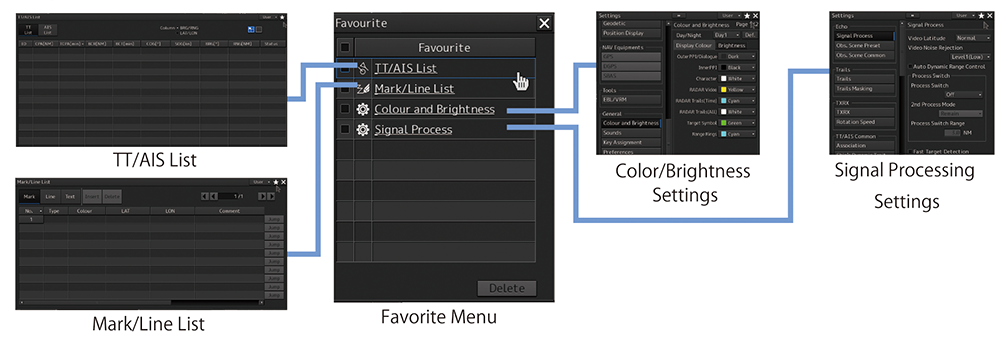

Original Menu
Create original menus that include only the items you need, and a favorites list to bring up frequently used items in one location.
Remote Maintenance System (RMS)-compatible
The JMR-5400 series is compatible with JRC's proprietary Remote Maintenance System (RMS), which uses JRC's VDR and satellite communications to remotely link to the equipment onboard the vessel to perform remote diagnostics and preventive maintenance. For more information on RMS, please contact JRC's business department.
Radar antennas with exceptionally reliable target detection capabilities.
S band - 8ft 250W solid-state radar antenna
Further miniaturization provides even greater mountability.
S band - 8ft 250W solid-state radar antenna

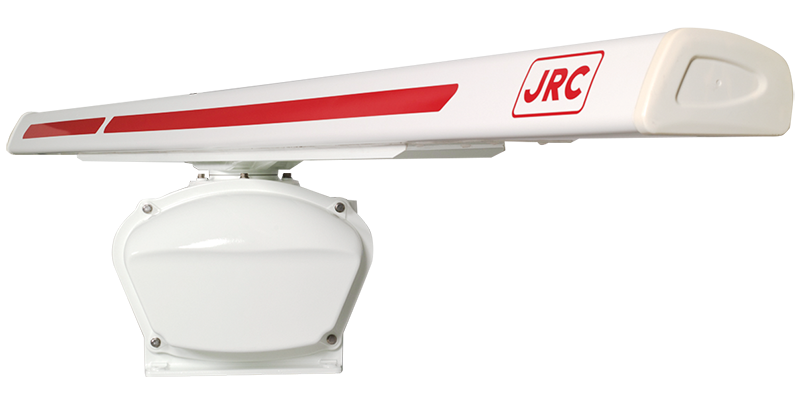

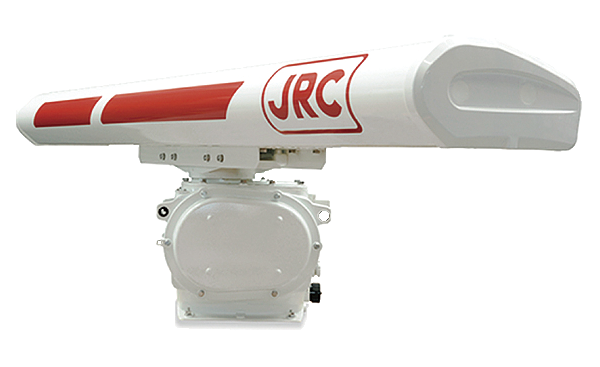

New Radar Antenna
A newly tuned system cuts search times to roughly 1/4th of what they were previously. Additionally, thinning of the antenna height means improved drive device reliability.
25kW X-band NKE-2255

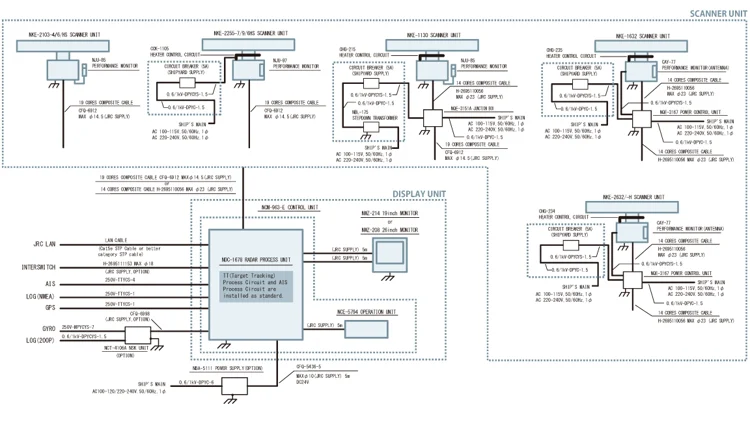

System
Dimensions
Display units

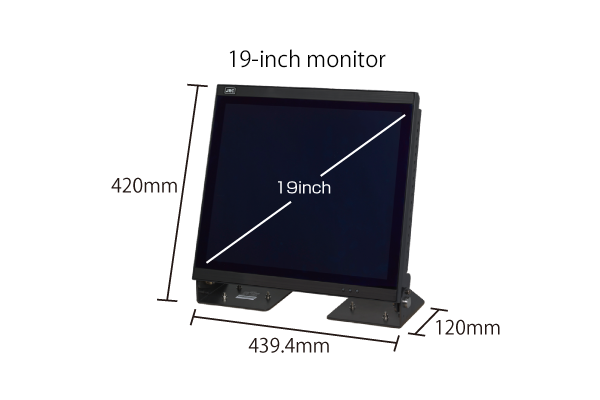

NWZ-214 Weight : 4.6 kg 4.9 kg (AC option)

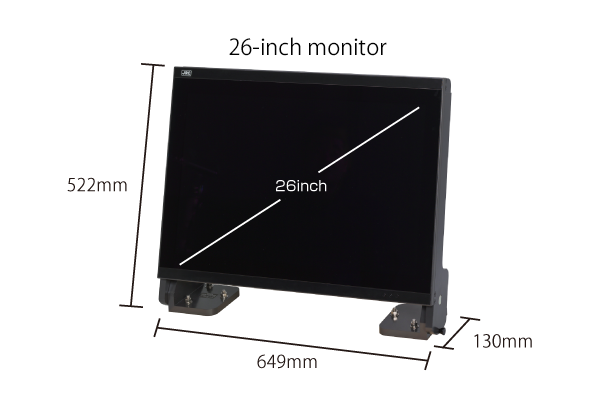

NWZ-208 Weight : 16 kg

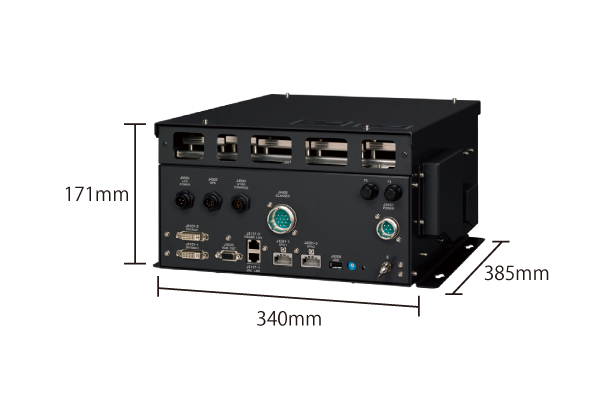

Processor
NDC-1678 Weight : 7.1 kg

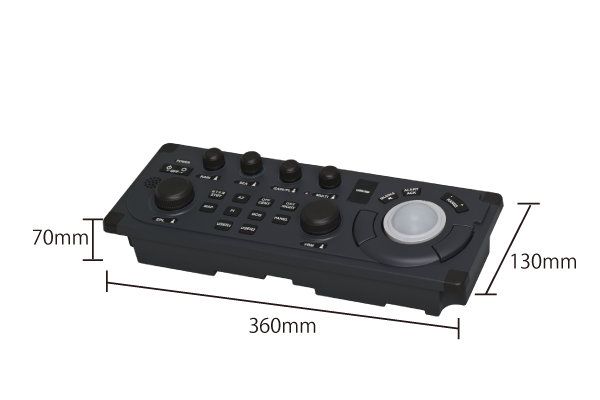

Keyboard
NCE-5794 (Standard keyboard) Weight : 2.0 kg

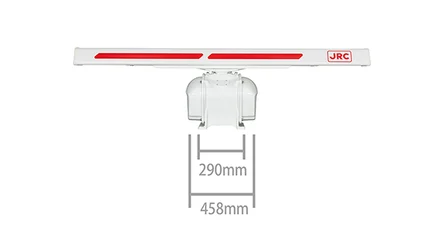

Scanners

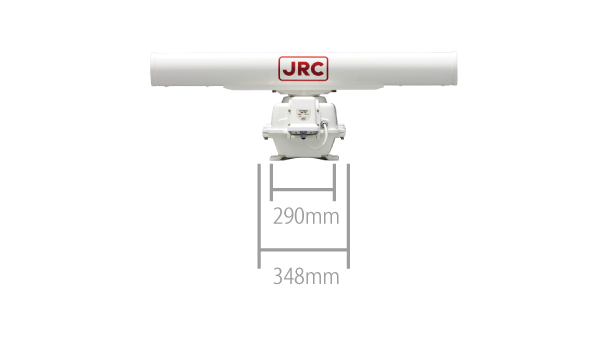

10kW X-band scanner
4ft 10kW : NKE-2103-4
Swing circle : 1320 mm

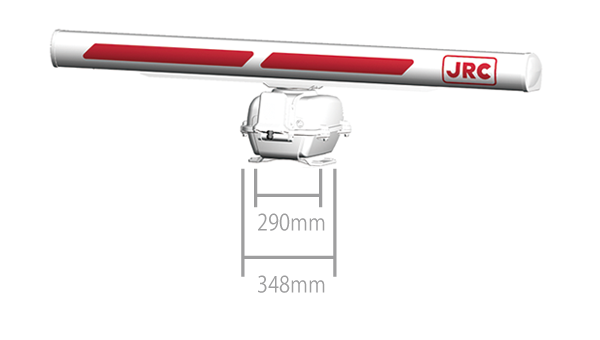

10kW X-band scanner [High speed]
6ft 10kW : NKE-2103-6 / HS
Swing circle : 1910 mm

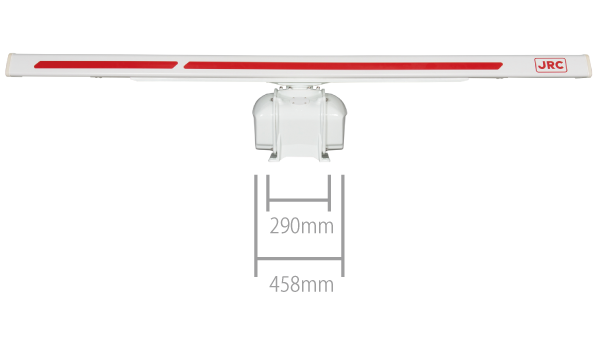

25kW X-band scanner
7ft 25kW : NKE-2255-7
Swing circle : 2240 mm

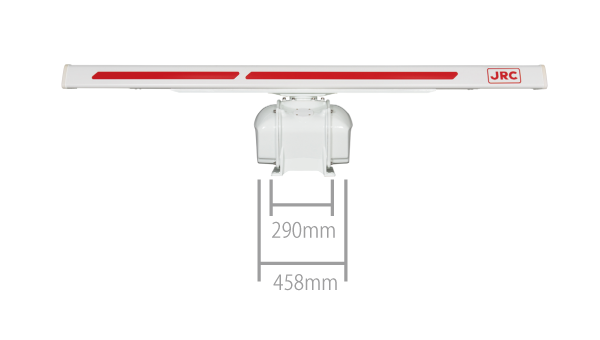

25kW X-band scanner
9ft 25kW : NKE-2255-9
Swing circle : 2810 mm
25kW X-band scanner [High speed]
6ft 25kW : NKE-2255-6HS
Swing circle : 1880 mm

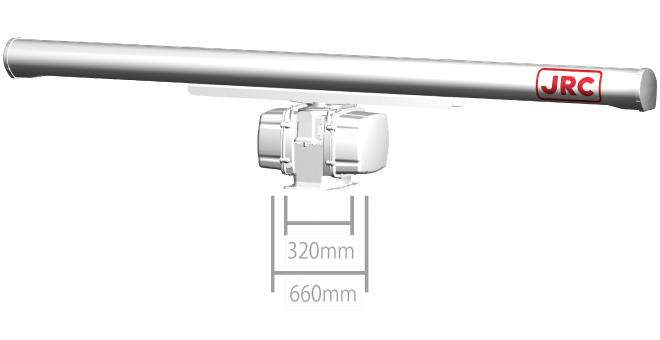

30kW S-band scanner (2 unit)
12ft 30kW : NKE-1130
Swing circle : 4000 mm
