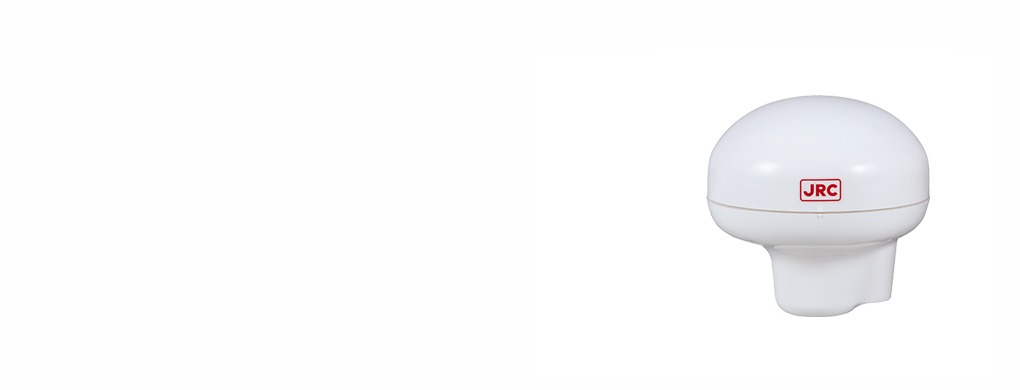

JLR-4350
GPS/DGPS Receiver/Navigation
JLR-4350
Download Brochure
FEATURES SPECS

Features

Realized high-accuracy positioning with multi-GNSS compatible

It corresponds to five satellite systems of GPS, GLONASS, BeiDou, SBAS and QZSS*1, and high- accuracy positioning than single positioning by GPS is possible.
Combination for Multi-GNSS Accuracy ( 2DRMS )
GPS + GLONASS + QZSS 4 m
GPS + BeiDou + QZSS
GPS + GLONASS
GPS + BeiDou
GPS + SBAS
GPS + QZSS 5 m
GPS

Up to 22 satellite signal trackable*2

The Newly designed multi-GNSS compatible sensor allows simultaneous receiving of signals of up to 22 satellites, and achieves stable positioning.
*2: Can not receive GLONASS and BeiDou at the same time.

Quick positioning capability

Typically 4 seconds*3 for first position fixing without GPS almanac data. Positioning completes in 35 seconds*4 after power on even if the receiver has been left powered off for a long time.
*3: Hot start fix
*4: Cold start fix

Complies with the output format of NMEA 0183 and IEC 61162-1

It corresponds to NMEA 0183, IEC 61162-1 format which is standard of navigation equipment. NMEA 0183 is compatible with versions 1.5, 2.1, 2.3, and 4.0, and can be connected to radar, fish finder, plotter, etc.

Components

Standard components

Name Model Q'ty Notes
GPS sensor JLR-4350 1 Including 15 m ( 49.5 ft ) cable with connector
Instruction manual 7ZPNA4693 1
Cable Guard Rubber MPPK31468 1

Option

Name Model Notes
Screw adapter MTV302007A
Mounting band MPBP02520
Extension Cable CFQ-9000 15 m cable with connector

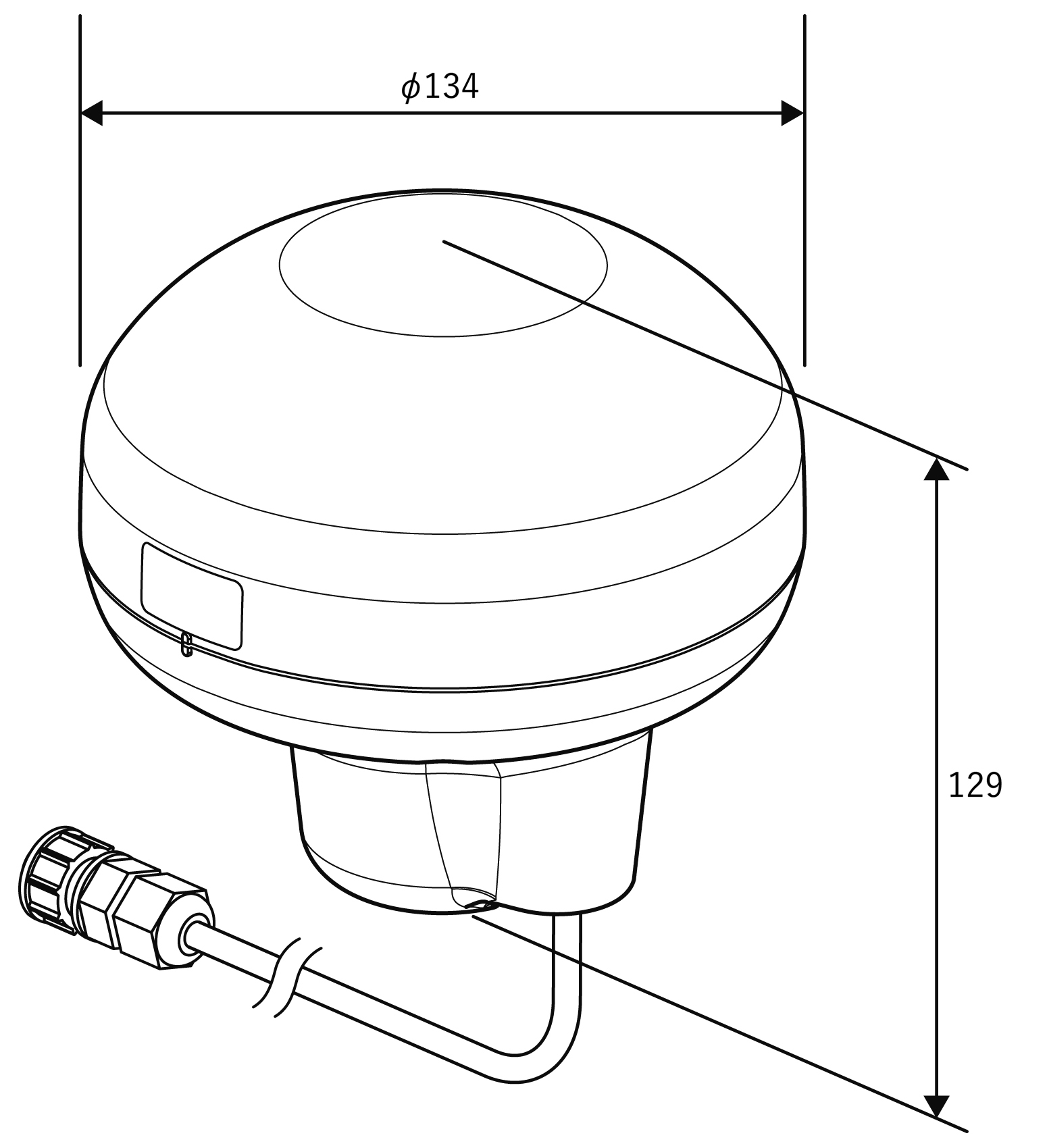

Dimensions

unit : mm
Mass : Approx. 1.2 kg
