Smart Bridge Monitoring System
myView is transmission and display of image and sensor data(received from ship's equipment and/or VDR devices) to various
smart devices connected to wired/wireless networks on board the ship.
This allows for real-time situational monitoring of events accuring on the ship and on the land.
Received data can be displayed in various ways, according to the user specified settings.
- The smart monitoring of bridge equipment on
wired/wireless networks (PC, Mobile) - Mobile based VDR Playback and
Alarm Monitoring
Base Specifications
| Video Input | HDMI, DVI, DP, RGB, VDR Image |
|---|---|
| Sensor Input | IEC61162-1, 2, IEC61162-450 |
| Support Protocol | HTTP, WebSocket |
| Smart Devices | PC, Phone, Tablet, Watch, MOTOTRBO (OS : Window, Android, ios) |
SYSTEM STRUCTURE
- 1Real-time equipment screen monitoring through MVS(myView Server) (Web, Mobile)
- 2Mobile VDR Playback
- 3Monitoring of vessel sensor data and RADAR and ECDIS screens through the NMEA protocol
- 4Mobile Alarm monitoring

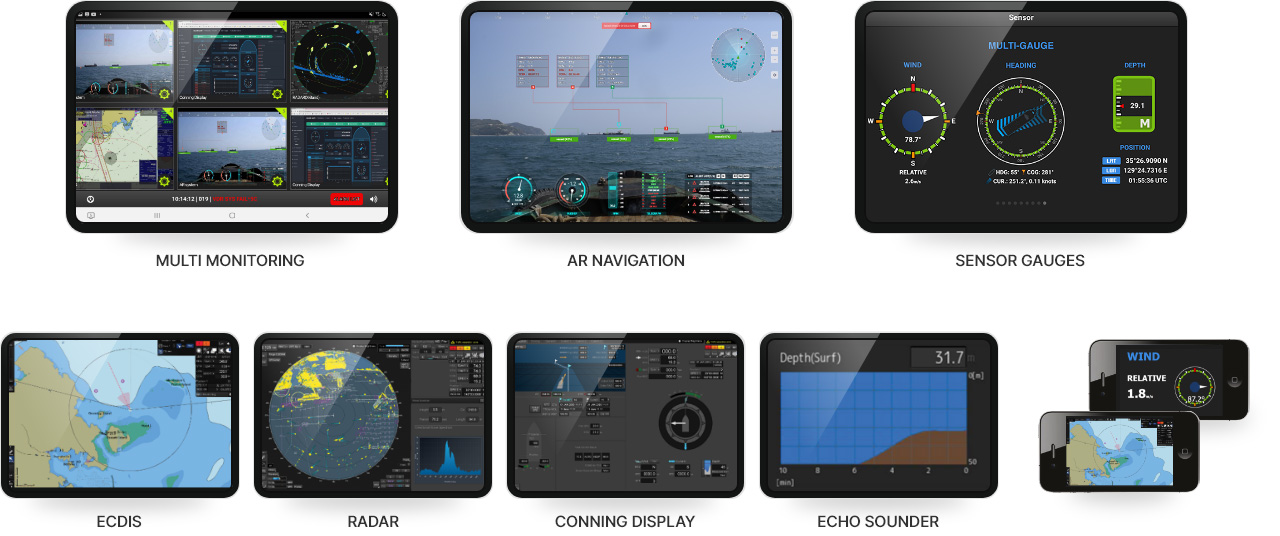

MONITORING SCREEN
INTRO VIDEO
View myView introduction video
