Home > JRC 제품 > Navigation > Plotter > JLZ-1000
Plotter

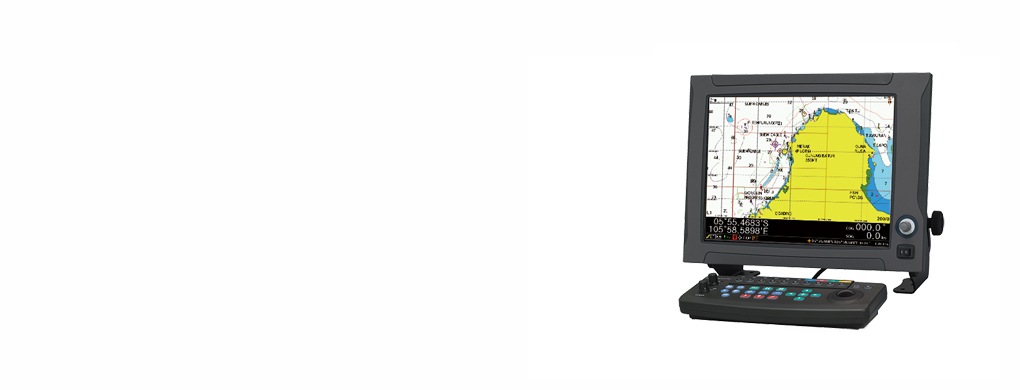

JLZ-1000

Features

Support for latest NAVIONICS+ charts

The newest NAVIONICS+ allow for incredibly detailed display of sea areas. The JLZ-1000 color plotter also has a high-speed display for stree-free navigation and chart updates to let you operate using the latest data.

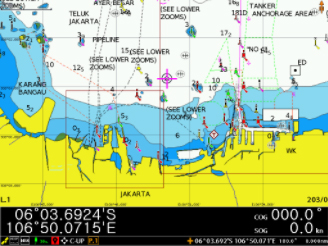

Jakarta port

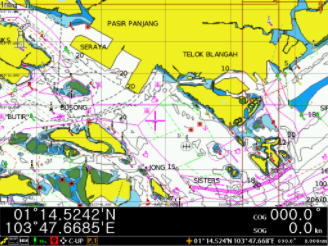

Singapore port

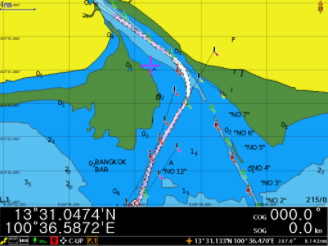

Bangkok port

Display up to four kinds of various information including charts, highways, analog meters*2, and monitoring displays*3 in split-screen simultaneously.

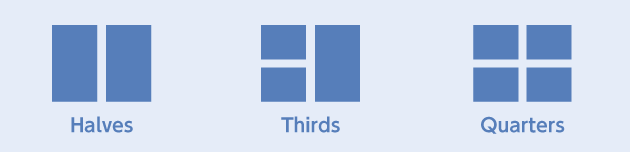

Color Plotter JLZ-1000 split-screen options

*2 : Connect the CAN unit to display engine and fuel information.
*3 : By connecting an external camera, a monitoring video can be displayed.

Operation-assistive display features

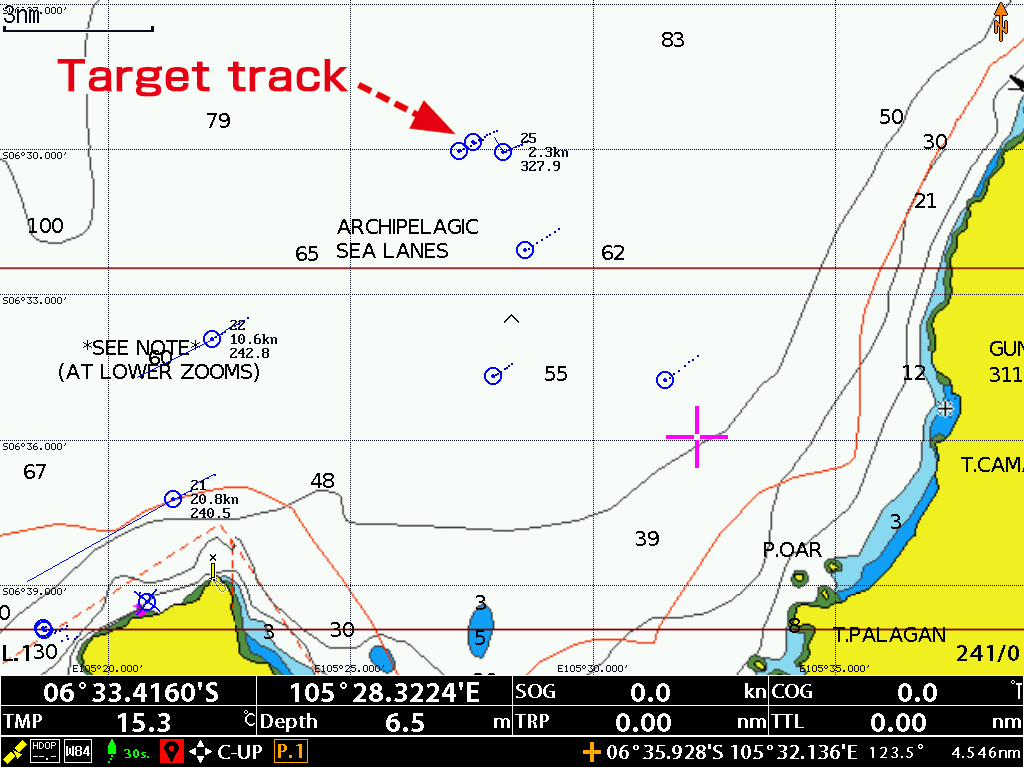

TT(ARPA) display

The radar's TT functionality displays the trails of other ships.

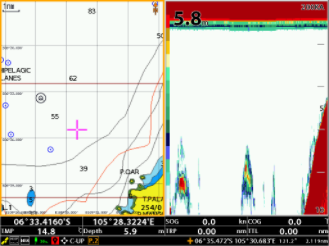

Sounding display

Displays the sounding function on connecting the transducer.

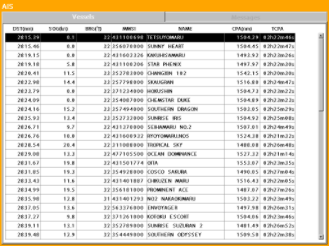

AIS display

Connect an AIS receiver to display AIS information.

New key layout for comfortable navigation

The JLZ-1000 allows you to carry out all operation simply by using the keyboard even in turbulent waters.

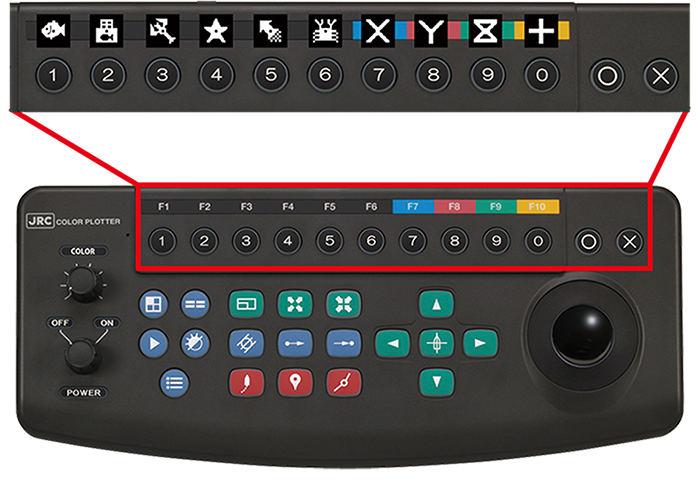

Preset keys

Assign different functions to each button. Up to ten presets can be set in total.

Preset keys example

Pre-sets

Set event mark

Set cursor mark

TT track display

Screen display
(charts, depth information, data readouts, highways, destinations, routes, GPS, AIS, DSB and NAVTEX information)

Chart display settings

Information readouts(TT, GPS buoys, AIS and DSB)

Tracking information(water depth, temperature, currents, date, and time)

Data conversion software is available. It helps you transfer your important content stored in a JRC's previous model to JLZ-1000.
For more information, please contact us.

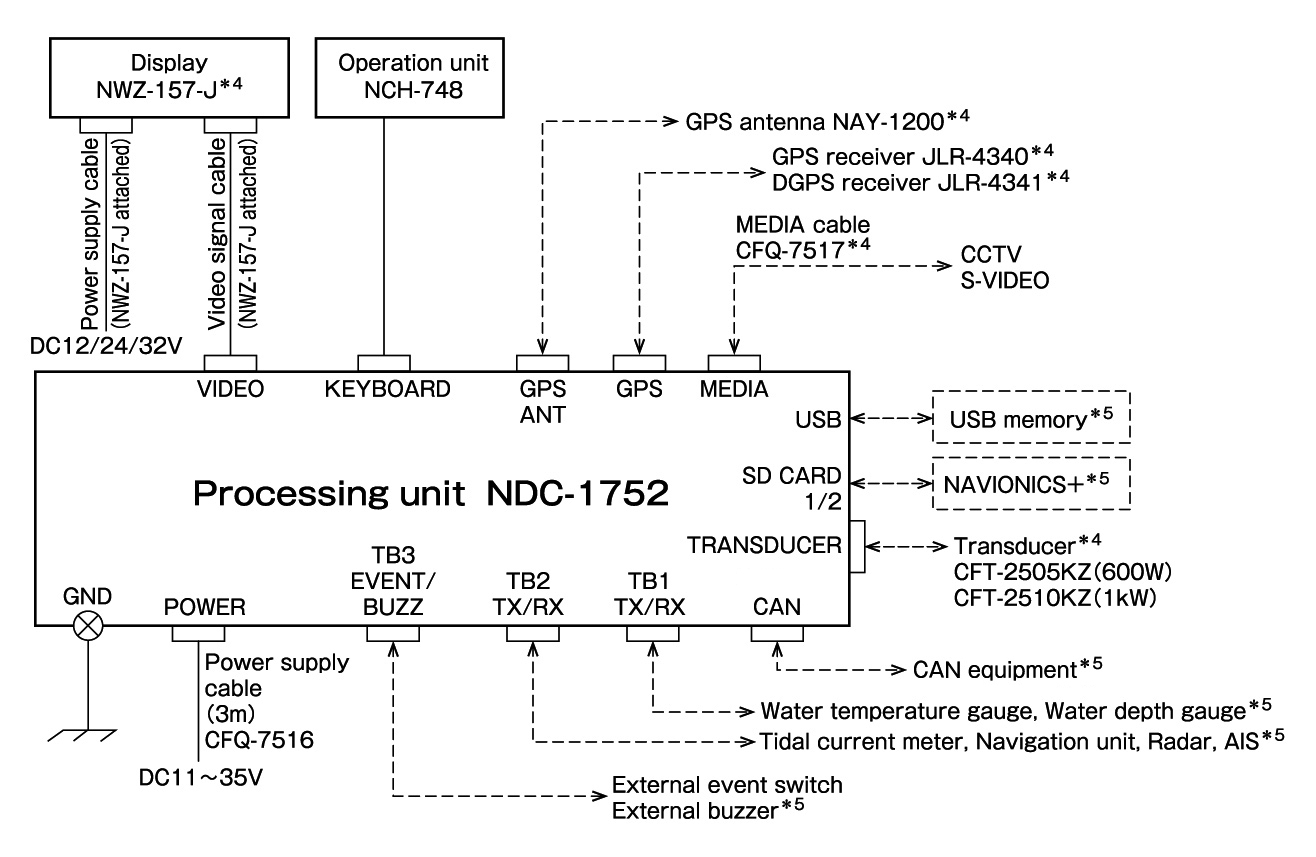

System

*4 :The following equipment is optional.
Display NWZ-157-J
GPS antenna NAY-1200
GPS receiver JLR-4340
DGPS receiver JLR-4341
MEDIA cable CFQ-7517
Transducer CFT-2505KZ/CFT-2510KZ

*5 :The following equipment is customer discretion.
NAVIONICS+
CAN equipment
USB memory
Water temperature gauge
Water depth gauge
Tidal current meter
Navigation unit
Radar
AIS
External event switch
External buzzer
External camera

Dimensions

unit:mm

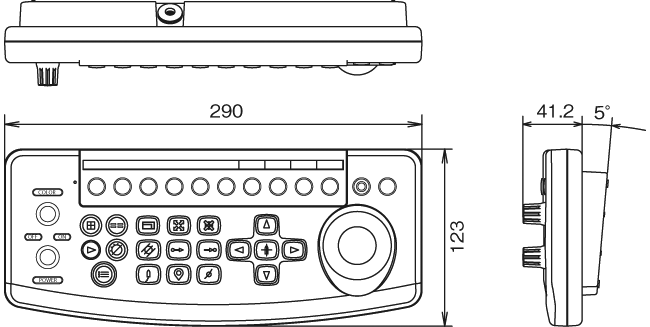

Operation unit

NCH-748
Weight:About1.1kg

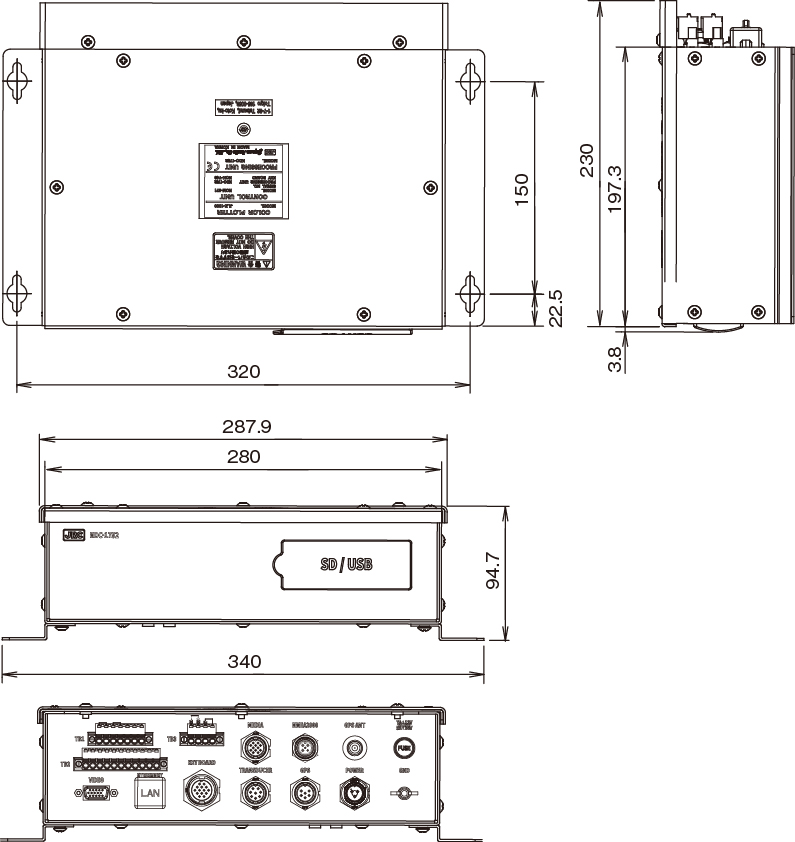

Processing unit

NDC-1752
Weight:About2.2kg
