Home > JRC 제품 > Navigation > Sounder > JFE-400/700
ECHO SHOUNDER
JFE-400/700

Features

Both the JFE-400 and JFE-700 echo sounders continue the tradition of enhanced depth technology with highly accuracy and reliability.

Main Features

Other ships interference prevention AUTO function

Highly visibility color touch panel LCD

10.4-inch XGA high resolution LCD (JFE-700)

48 hours of depth data memorizing

Echoes in 8 colors or 8 levels of monochrome

Dual frequency display

Separate model (JFE-400)

All-in-one model (JFE-700)

Optional printer (JFE-400)

Built-in printer (JFE-700)

History read-out

Meets the IMO Resolution MSC.74(69) Annex 4

The echo sounder is a mandatory equipment for large vessels and the JFE-400/700 meets the IMO Resolution MSC.74(69) Annex 4.

Other ships interference prevention AUTO function

JRC's new echo sounder is equipped with the AUTO function in the other ships interference prevention function.
Optimal interference prevention processing works according to the usage conditions, it is possible prevent misidentification of interference waves emitted from other ships.

Display modes

JRC's new echo sounders incorporates a 6.5-inch and 10.4-inch high visibility color touch panel LCD. The display modes allow you to select and view echoes in 8 colors or 8 levels of monochrome.
The separate model JFE-400 echo sounder incorporates printer adaptability.

*: The table mount kit is optional.
The separate model JFE-400 echo sounder incorporates printer adaptability.

*: The table mount kit is optional.

Memory and read-out up to 48 hours of depth data

The maximum recording time for depth data has been doubled to 48 hours from the 24 hours of previous models. History mode also enables reading of past recorded depth data.

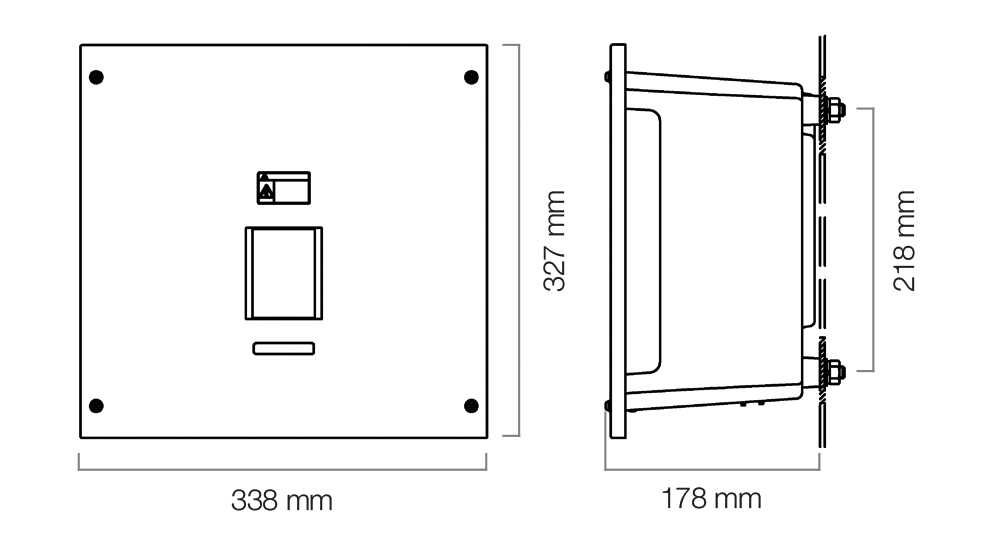

Dimensions

Display Unit NWZ-1650
Mass: Approx. 1.0 kg

Processor Unit NQA-4327
Mass: Approx. 5.9 kg

Display Processing Unit NJA-710
Mass: Approx. 7.0 kg

Matching Box NQD-2597/2598
Mass: Approx. 0.87 kg NQD-2597
Mass:Approx. 0.76 kg NQD-2598

Transducer NKF-349 (200 kHz)
Mass: Approx. 26 kg *: Exclude Cable

Transducer NKF-350 (50 kHz)
Mass: Approx. 26 kg *: Exclude Cable
