Home > JRC 제품 > Navigation > Speed log > JLN-720

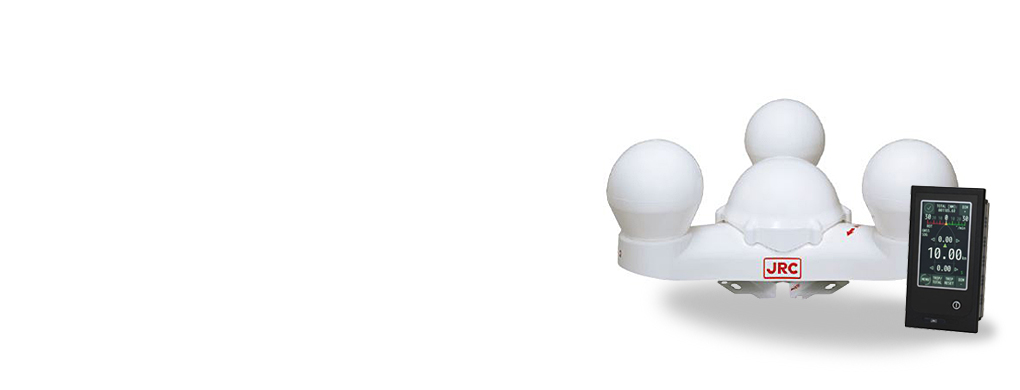

SATELLITE LOG
JLN-720
Features

Accurate ships speed and distance with your fingertip operation

Comply with IEC 61023(Ed.3), SDME standards for the ships of 50,000GT and greater

Provide ship speed with high accuracy 0.02kn or 0.2%

Offers transverse speed at bow and stern along with longitudinal speed, ROT and total/trip distance with the satellite signals

Color LCD display with touch panel provides clear display and easy operation

JRC original Remote Maintenance System (RMS) applicable

System

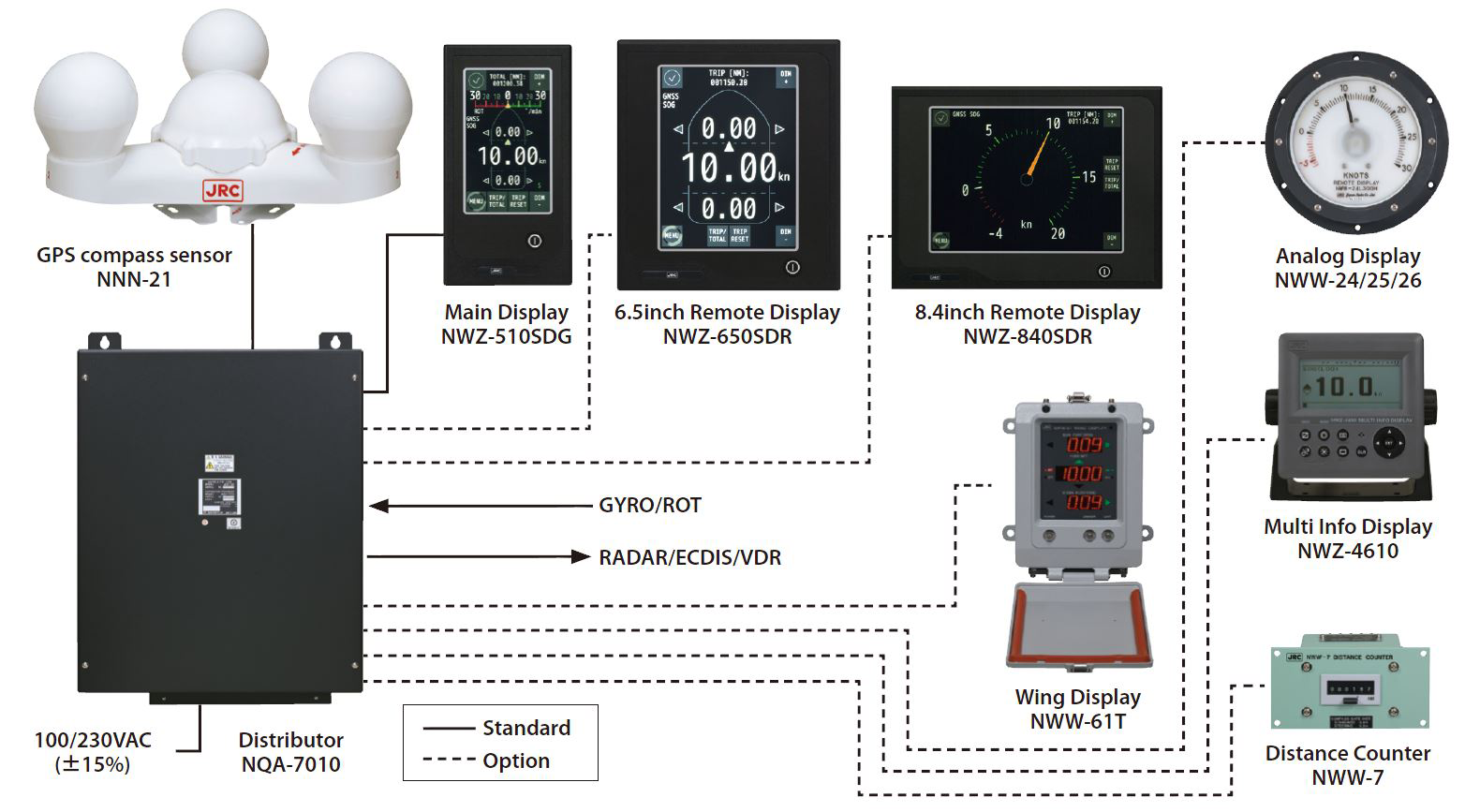

System Diagram

Standard components

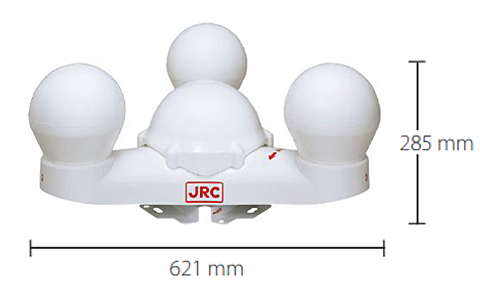

GPS Compass Sensor NNN-21
Distribution Processor NQA-7010

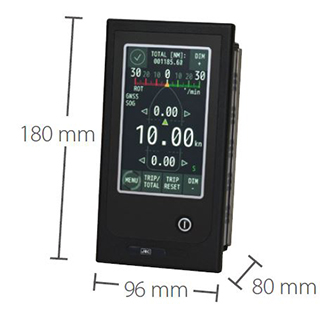

Main Display NWZ-510SDG
Data Cable H-CFQ-7248
Main Display Communication Cable CFS-5680
LAN Plug Connector TM21P-88P(07)
Spare part H-7ZXNA3004
Instruction manual H-7ZPNA3206

Optional components

Remote Display NWZ-650SDR NWZ-840SDR
Multi-information Display (MID) NWZ-4610
Wing Display NWW-61T
Digital Display NWW-62TA/TB
Distance Counter NWW-7
Analog Display NWW-24 NWW-25 NWW-26
Dimmer Unit NCM-227 NCM-329
Remote Display Communication Cable CFS-6880
GPS Compass Sensor Connection Cable H-CFQ7248-30 CFQ-7249 H-CFQ-7249-10
Multi-information Display Communication/Power Supply Cable CFQ-5766D CFQ-5766F
Junction Box for GPS Compass Sensor NQE-7720
Junction Box Mouting Bracket MPBP31612
Mounting Rack MPBX44117
Bird-hazard Preventive Kit MPXP34012A
